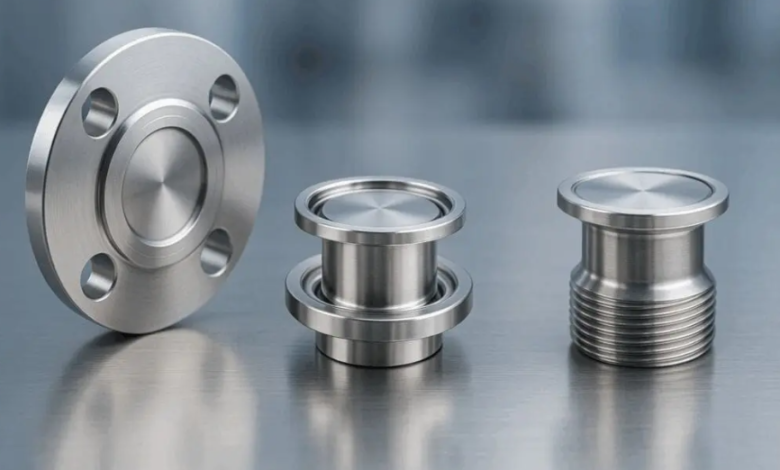

Introduction to Rupture Disks
Safety and efficiency are top priorities in modern industrial processes. Overpressure situations in pipelines, tanks, or vessels can cause catastrophic failures if not properly managed. One of the most reliable methods for preventing such incidents is the use of rupture disks. These devices act as a controlled safety mechanism that releases excess pressure to avoid damage to equipment, ensure personnel safety, and maintain uninterrupted operations.
Understanding what is a rupture disk, how it functions, and its applications across different industries is essential for engineers, safety professionals, and operational managers.
How a Rupture Disk Operates
A rupture disk is essentially a thin membrane designed to burst at a predetermined pressure. When the system pressure exceeds the rated value, the disk ruptures and allows the excess pressure to escape safely. Unlike mechanical relief valves, rupture disks do not have moving parts, which minimizes maintenance requirements and reduces the risk of failure due to mechanical malfunction.
The disk’s rupture is instantaneous, offering near-instantaneous protection. After a disk ruptures, it must be replaced to restore the system’s safety capabilities. The design and material selection of the disk are crucial in ensuring predictable and consistent performance.
Key Characteristics of Rupture Disks
Rapid Response
Rupture disks react almost immediately to overpressure situations. This fast response time is essential in processes where even minor delays can result in hazardous conditions.
Simple and Dependable Design
The lack of moving parts makes rupture disks highly reliable. Their simple construction reduces the likelihood of mechanical failure and makes them suitable for critical safety applications.
Versatility in Pressure Ratings
Rupture disks are available in a wide range of pressure ratings, allowing them to protect both low-pressure laboratory equipment and high-pressure industrial systems.
Resistance to Corrosion and High Temperatures
Depending on the material, What is a Rupture Disk can resist chemical corrosion, thermal stress, and other challenging industrial conditions. Common materials include stainless steel, nickel alloys, and specialty polymers.
Types of Rupture Disks
Forward-Acting Disks
Forward-acting disks rupture when internal pressure pushes against the concave side of the disk. They are commonly used when full-flow relief is necessary.
Reverse-Acting Disks
Reverse-acting disks are suitable for systems experiencing backpressure. They remain stable under backpressure conditions and rupture only when the forward pressure exceeds the design limit.
Scored Disks
Scored disks have etched patterns that control the rupture path, ensuring predictable bursting behavior.
Slit Disks
Slit disks feature pre-cut openings that initiate controlled rupture, which helps protect surrounding equipment during pressure release.
See also: Boost Website Performance Through Smart Web Design Techniques
Applications of Rupture Disks
Chemical and Petrochemical Industries
Chemical plants often involve highly reactive substances, which can create unexpected pressure spikes. Rupture disks protect reactors, storage tanks, and pipelines, preventing potential explosions or hazardous leaks.
Pharmaceutical and Food Production
Sterile and sensitive production environments require precise pressure control. Rupture disks prevent contamination and provide safe pressure relief in production equipment.
Energy and Power Generation
In power plants, turbines, boilers, and heat exchangers operate under high pressures. Rupture disks serve as a critical backup safety measure, ensuring that overpressure situations do not compromise plant integrity.
Laboratory Equipment
Even small-scale systems can face overpressure risks. In laboratories, rupture disks offer simple, effective protection for research apparatus, experimental setups, and small vessels.
Advantages of Using Rupture Disks
Enhanced Safety
The primary advantage of rupture disks is the protection they provide against equipment failure and personal injury. By relieving pressure quickly, they mitigate the risk of catastrophic incidents.
Low Maintenance Requirements
Rupture disks require minimal maintenance due to their simple design. This reduces operational costs and downtime.
Compatibility with Aggressive Media
Rupture disks can be manufactured from corrosion-resistant materials, allowing their use with hazardous chemicals, acids, or other aggressive substances.
Cost-Effectiveness
Compared to complex mechanical pressure relief systems, rupture disks offer a reliable and economical solution for overpressure protection.
Selecting the Right Rupture Disk
Determining Pressure Rating
Select a disk that bursts slightly above the system’s normal operating pressure but below the equipment’s maximum allowable pressure.
Material Choice
Material selection should account for chemical compatibility, temperature extremes, and mechanical stresses. Common options include stainless steel, Hastelloy, and nickel alloys.
Flow Requirements
The selected disk must be able to relieve sufficient pressure flow to protect the system during a rupture event.
Installation Requirements
Correct installation is essential for proper function. Factors like disk orientation, alignment, and flange compatibility must be considered.
Installation and Maintenance
Installation Guidelines
Follow manufacturer specifications for proper installation. Incorrect placement can cause premature rupture or ineffective protection.
Routine Inspections
Periodic checks for corrosion, wear, or damage help ensure that rupture disks are ready to operate when needed.
Replacement After Activation
A ruptured disk must be replaced immediately to restore safety protection. Stocking replacement disks reduces operational downtime.
Compliance and Standards
Rupture disks comply with international safety standards, such as ASME, ISO, and API, to ensure predictable performance and regulatory approval. Using certified devices guarantees safety and reliability in critical applications.
Future Trends
Advanced Materials
Emerging materials enhance resistance to corrosion, chemical attack, and high temperatures.
Smart Monitoring Systems
Integration with pressure sensors and monitoring systems allows early detection of stress, improving predictive maintenance and safety.
Eco-Friendly Designs
Manufacturers are exploring recyclable and environmentally safe materials to reduce waste and minimize environmental impact.
Conclusion
Understanding what is a rupture disk is essential for industries where overpressure can pose significant hazards. These devices offer reliable, rapid, and cost-effective protection for a variety of systems, from small laboratory setups to high-pressure industrial equipment. Proper selection, installation, and maintenance ensure maximum safety, while advances in materials and monitoring technologies continue to enhance their effectiveness. In today’s industrial landscape, rupture disks remain a critical component of a comprehensive safety strategy.
